Brief introduction ●Sewage discharge of toilet and shower room (or wash basin) or air-conditioning condensate in the basement lower than the main sewer. ●It is lower than the basement under the municipal sewage pipe or on the same floor without sewage pipe. It is applicable to the discharge of domestic sewage generated by rear toilet, shower room, wash basin, bar sink, etc. ●B-Lift28L is suitable for pumping sewage generated from shower rooms or hand basins, as well as conveying sewage containing feces and other substances generated from toilets.(If the pumped liquid contains other hard objects, it may cause malfunctions, which are not covered by Burks' warranty). |
Pumping liquid The sewage generated by the shower room (or sink), and the sewage containing feces and other substances generated by the toilet. ●Allowable liquid temperature: 55 °C (maximum 90 °C for a short time) ●Water for washing shower room (or wash basin) and toilet. ●Allowable liquid PH value: 4-10. ●Strong chemical solvents are not allowed. |
|
|||
| Overall dimensions （Unit of measurement：mm） |
|
||||
|
|
|
|||
|
|
||||
|
Technical data |
|
|||
|
|
||||

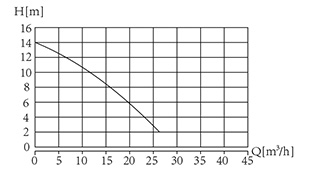

| Diagram |
|
||||
|
|
|
|||
|
|
|||||
|
Control system ●Overload, overheating and no-load protection ●Adjust the start stop height ●Regular inspection ●Intelligent wireless networking function (optional) Protect
● Control box： IP65 |
|
||||
|
|
||||
|
|
|
|
|
|
|
| Installation introduction | Installation steps |
|
|||||||||
|
|
Tools to be used: electric hand drill, 90mm hole opener (water inlet hole), 35mm hole opener (water inlet hole, air vent hole), slot screwdriver. |
|
||||||||

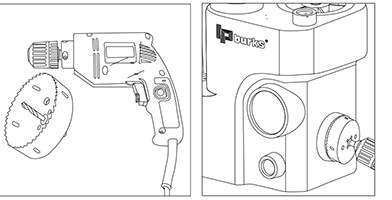

| ●Prepare tools | ●Tapper alignment and positioning |
|
|||||||||
|
|
|||||||||||
|
|
||||||||||
|

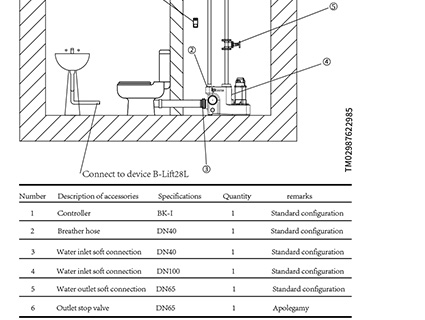

● 1：The air vent of the lift pump can be connected to a PVC drain pipe with an outer diameter of Φ50mm. If it does not conform to the site pipe diameter, the reducer can be used to reduce the diameter before connecting to the air vent. The air vent pipe is connected to the equipment with a stainless steel hoop (provided by the equipment). (When connecting the water outlet pipe, pay attention to using PVC glue for water supply. The installation of the vent pipe is required to be higher than the roof or the outdoor green belt). ● 2：The external single pump series has only one outlet pipe. The diameter of the outlet pipe is Φ75mm PVC water supply pipe or DN65 galvanized steel pipe. Soft connection is used to connect with the on-site outlet pipe. A reducer can be configured to connect with the on-site pipe diameter. (Special glue shall be used to connect the water outlet pipe. Attention shall be paid to the PVC water supply glue equipment with its own check valve. During installation, a stop valve shall be installed in the water outlet pipe.). ● 3：The external single pump series is reserved with 4 DN100 water inlets and 3 DN40 water inlets. According to the on-site water inlet needs, corresponding water inlet openings can be selected to connect the pipeline.can be selected by oneself. |
|
||||||||||

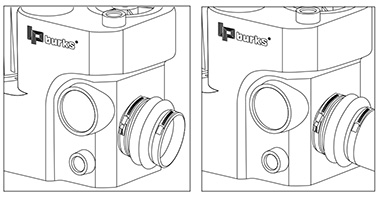

| ●The flexible connection big end is fixed on the box | ●The flexible connection small head is fixed on the water inlet pipe |
|
|||||||||
|
|
||||||||||
| Note: The installation pictures are for reference only, and the positions of different models of boxes or holes will be different. |
|
||||||||||
|
|
|||||||||||
| Connecting accessories |
|
||||||||||
|
|
||||||||||
| Φ110 rubber flexible joint (connecting the water inlet on the box and the water inlet on both sides) | Φ50 Rubber flexible joint (connecting the vent on the box and the water inlet on both sides) |
|
|||||||||
|
|
|||||||||||
